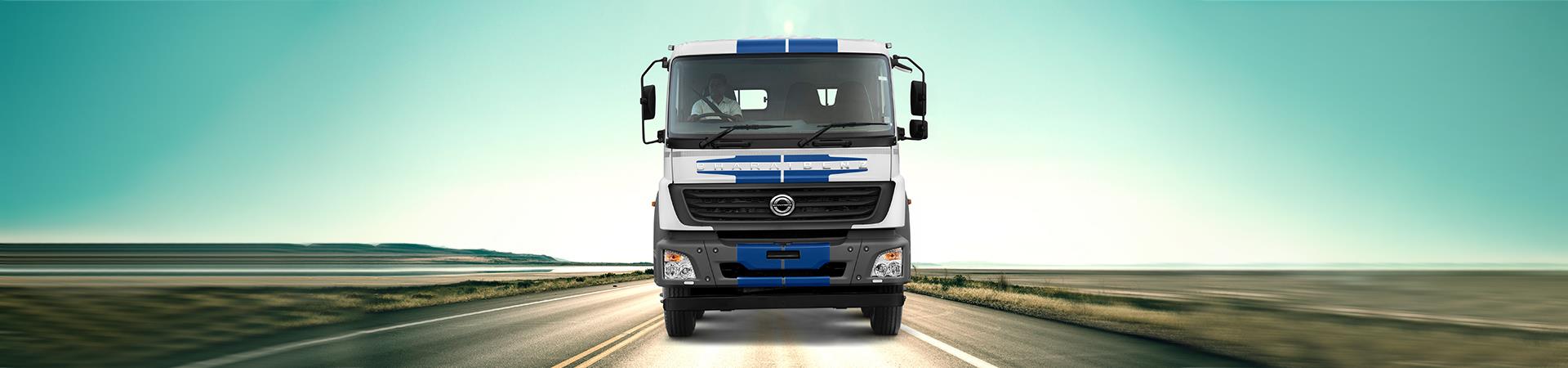

3723R

Specifications

Powertrain

Engine

Model

DE175BS4

Maximum Power

175 kW (235 hp) @ 2200 rpm

Maximum Torque

850 Nm @ 1200 - 1600 rpm

No. of Cylinders, Displacement

6 Nos, 6372 cc

Emission Compliance

BSIV

Gearbox

Gearbox Model & Type

G131-9F + 1 R, Mechanical, Synchromesh Gears

Clutch Type, Diameter

Single dry plate, Hydraulic control with clutch booster, 395 mm

Axle

Front Axle Model, Type

IF6.6 Reverse elliot & IT10, Pusher

Rear Axle Model, Type

IR440 Fully floating, Hypoid gears

Rear Axle Ratio

4.778

Dimensions (mm): All Dimensions are for CBC

Wheel Base: 6575
Overall Length: 11044
Overall Width: 2490
Overall Height: 2975
Front Overhang: 1460
Rear Overhang: 2334
Minimum Ground Clearance: 260
Load body length: 8420 (28 ft)

Weight

Gross Vehicle Weight

37,000 kg

Chassis Frame. Suspension & Tyres

Chassis Type

Channel Section with cross members

Depth x Flange Width x Thichness

284mm x 70mm x 7mm

Front Suspension

Parabolic type leaf spring with 2 hydraulic shock absorbers

Rear Suspension

Balancer type Semi elliptical leaf spring

Anti roll Bar

Standard on Front axle (Optional on rear axle)

Brakes & Tyres

Service Brake

Pneumatic, Foot operated, Dual line with ABS

Parking Brake

Pneumatically operated hand control valve

Wheel Rims & Tyres

8.25” x 22.5” & 295/80R22.5 16PR; 7.5” x 20” & 10R20 16 PR

Steering & Cabin

Steering Type

Hydraulic Power assisted

Cabin

Sleeper cabin with Berth, Tiltable

Fuel Tank & Electricals

Fuel Tank

330 litres

Adblue Tank

60 litres

Voltage

24 V Electrical System

Battery Capacity

2 x 12 V, 120 Ah

Performance

Maximum Gradeability

29.6%

Maximum Geared Speed

80 km/h

Minimum Turning Circle Diameter

24 m

Configuration

Standard

Cabin with Chassis

Option packs

Hazardous Goods Package/High CG Pack

Colour Options

Arctic white, Golden brown
